Protean & FAW-VW China to Develop RWD In-Wheel Motor System

Protean Electric has announces a partnership with FAW-VOLKSWAGEN (China) to develop an all new electric propulsion system that will include Protean Electric's in-wheel motors with intent towards a demonstration vehicle program and production.

FAW-VW will create an all-new rear-wheel drivetrain for a pure Electric Vehicle (EV) based on the new Bora compact sedan, utilizing two Protean in-wheel motors. This cooperation began several months ago and so all bench testing, engineering calibration and on site application support is expected to be completed within a year. Protean Electric will also assist FAW-VW in the development of safety and vehicle controls that can be applied to additional vehicle programs.

"Protean Electric is very pleased and honored to be working with FAW-VW. Our involvement with this prestigious automaker shows that Protean Electric is continuing to serve as a valuable resource for OEMs as they develop New Energy Vehicle programs," says Kwok-yin Chan, CEO of Protean Holdings Corp. "This is a two-phase project that will capitalize on the torque and packaging freedoms that Protean Drive™ can bring to an automaker. Our technology will return the space to the new Bora vehicle platform that was formerly occupied by an in-board motor and powertrain."

Protean raised $84 Million in VC funding last year and moved their operation to Liyang, Jiangsu Province, China.

Posted on

Zoox Reveal Autonomous Bi-directional Electric Vehicle Concept

Meet The Boz; it's not really a car - it's what might come after the car - a vehicle design based entirely around autonomous driving.

Inside the Boz, the experience would be like sitting in a train. Drivers become passengers, or "commanders." Without needing to focus on traffic and road signs, they would be able to use the commute to do some work or watch a video or have a snooze!

Just as the internal combustion engine enabled the car to replace the carriage, Zoox believe autonomous technology will replace the car, and in doing so create a new class of mobility known as 'Level 4'.

Level 4 is a term taken from a policy statement the US National Highway Traffic Safety Administration released on May 30, 2013. This document outlines a spectrum of mobility systems from the fully manual Level 0, through to Level 4 which is fully autonomous.

From a design perspective, the first element you may notice is what's absent: the front and rear windshield. This is not to say L4s can't have them — certainly those designed for tourism would — but this vehicle makes the statement that you now have an option.

Firstly, it gains thermal, aerodynamic and acoustic efficiencies. The thermal load lost through the windshield is significant, requiring energy intensive climate control systems, as well as a number of ancillary systems to keep the glass clear. These inefficiencies are removed.

The entry profile of the vehicle is aerodynamic as a near teardrop, unattainable in a car due to the requirement for driver vision. The low profile roofline and absence of glass further lends itself to superior acoustic insulation. The side windows are thin, but double glazed, which enhances these properties.

Because the requirement for the passenger to be situationally aware of their exterior environment is removed, external sound and light can be shielded to enhance a sense of serenity and safety. This is a superior environment for interacting with voice-activated systems, watching video or conversing.

You can be in the middle of a bustling city, but when the door seals, you are in your own world.

The next point of observation may be that there is no hood. This is because there is no internal combustion engine — behind each wheel sits an electric in-wheel motor. The body language has been changed to reflect this setup, moving each wheel to its outer corner with minimal overhangs to maximize vehicle stability and interior volume.

Finally, the L4 is symmetrical in its X and Y axes — there is no differentiation between back or front. In fact, each quadrant of the vehicle is mirrored and identical.

Source: Zoox

Posted on

Nissan BladeGlider Wheel Motor Powered EV Concept [VIDEO]

More than a concept, Nissan BladeGlider is both a proposal for the future direction of Nissan electric vehicle (EV) development and an exploratory prototype of an upcoming production vehicle from the world's leading EV manufacturer. BladeGlider was developed with form following function. Nissan crafted the vehicle's unique architecture to give the driver and passengers "sustainable exhilaration" - a fresh electric vehicle driving experience based on peerless technology and exotic styling.

Targeting the visionary individual seeking visceral driving and sustainability, BladeGlider goes beyond sheer power and acceleration to send the heart soaring into new realms of smooth "gliding" pleasure. It is a physical demonstration of the innovation and excitement of the Nissan brand and Nissan's Zero Emissions Mobility leadership. BladeGlider's pioneering spirit distinguishes it from anything yet envisioned for EVs and destines it to rule the roads of the not-so-distant future.

Re-inventing the Performance Car - A Game Changer Designed from Scratch

A clean slate was the starting point for this project, led by Francois Bancon, division general manager of Product Strategy and Product Planning at Nissan. "The goal was to revolutionise the architecture of the vehicle to provoke new emotions, provide new value and make visible for consumers how Zero Emissions can help redefine our conception of vehicle basics," said Bancon.

BladeGlider's shape alone, with its narrow front track, challenges the orthodoxy that has dominated the roads since the earliest days of the internal combustion engine. The revolutionary nature of the car is more than skin deep. New possibilities for the designers and engineers were opened up by the unique characteristics of electric vehicles.

BladeGlider has its conceptual roots in two aerial images: the soaring, silent, panoramic freedom of a glider and the triangular shape of a high performance "swept wing" aircraft.

It is therefore fitting that, in terms of engineering, BladeGlider's developmental focus was aerodynamics: achieving low drag (cdA) while generating road-hugging downforce.

Disruptive and challenging to the status quo, BladeGlider shares sustainable engineering values with both Nissan LEAF - the best-selling EV in history ─and the Nissan ZEOD RC (Zero Emission On Demand Racing Car), which will make its debut at next year's Le Mans 24 Hour race.

A Provocative Shift in the Engineering Paradigm

With its narrow, 1.0 metre lightweight front track and wide, stable rear track, BladeGlider looks as if it could have sprung from a "skunk works" project. But the radical architecture all boils down to aerodynamics and balance. Having the front wheels close together reduces drag and enhances manoeuvrability for high-G cornering power, assisted by its 30/70 front/rear weight distribution ratio. Aerodynamic downforce is created by the highly rigid yet lightweight carbon-fibre underbody, hence the lack of drag-inducing wings.

When BladeGlider matures into a production car, it could be Nissan's first use of in-wheel motors. The in-wheel motors provide rear-wheel propulsion with independent motor management, while also contributing to freedom of upper body design and space-efficient packaging.

To power the electric motors, BladeGlider employs Nissan's innovative lithium-ion battery technology, proven in Nissan LEAF. Battery modules are mounted low and towards the rear to enhance stability and handling.

Revolutionary Breakthrough in High-Performance Design

BladeGlider embodies a fearless vision of the EV future. Its tightly streamlined deltoid body comprises a tough and structurally optimised chassis wrapped in ultra-lightweight, yet strong and stiff, carbon fibre reinforced plastic (CFRP) finished in a pearlescent white colour that evokes the pristine freedom of a glider. The racing-inspired exterior features a sculpted contour that is both functional and breathtakingly beautiful. Starting from the low, flat and narrow nose, the body line rises gracefully to the cockpit canopy and then curves forcefully back over the large rear wheels, evoking a sense of dynamic movement even when the vehicle is standing still.

"BladeGlider was conceived around delivering a glider-like exhilaration that echoes its lightweight, downsized hyper-efficient aerodynamic form," said Shiro Nakamura, Nissan's senior vice president and chief creative officer. "This design is more than revolutionary; it's transformational, applying our most advanced electric drive-train technology and racetrack-inspired styling in the service of a new dimension of shared driving pleasure."

Inside the canopy, the cockpit seats three in a triangular configuration with the driver centre-forward. Seating appointments feature special light and comfortable coverings with yellow fluorescent lines. Amid simple yet edgy interior styling cues, an aircraft-type steering wheel and state-of-the-art instrumentation technology complete the glider-like image. To support maximum EV cruising efficiency, the IT system can display relief maps and atmospheric conditions.

This efficient, aerodynamic, simple, and lightweight vehicle provides a "gliding" feel that combines the feeling of gravity-defying freedom and near-360 degree view of a glider with the pulse-quickening exhilaration of a race car.

"I think that the excitement of the racing car should be mirrored in the excitement of driving the road car," said Ben Bowlby, director of Nissan Motorsport Innovation, who has supported the BladeGlider's development. "I think there are elements we can bring from the race track to make these future road cars more exciting, more fulfilling and give greater driving pleasure."

As a rear-drive performance car, BladeGlider exhibits a coherent and linear handling that enables it to consistently hug road curves, providing feedback for intuitive and exhilarating steering control when cornering under threshold conditions.

Augmenting BladeGlider's aerodynamically-engineered precise feedback and control, the canopy-like visibility of the driving position engenders a synchronised feeling of oneness with the machine and the road. The result is a free soaring experience which the driver can share with two passengers in the V-shaped seating configuration. Passengers sit at the longitudinal centre of gravity to maintain the car's balance at all times. The centre-driving setting of the cabin space is designed to enhance the driver's sensatory experience.　

As a final touch, the driver's seat automatically slides laterally when you open the door, enabling easy access to passenger seats.

New EV Values for the Next Generation

By thinking outside the box, Nissan has created an EV that truly symbolises the unlimited potential of electric propulsion - balancing zero emissions with innovative excitement like never before.

Posted on

Evans Electric Unveils AWD In-Wheel Motor powered electric car

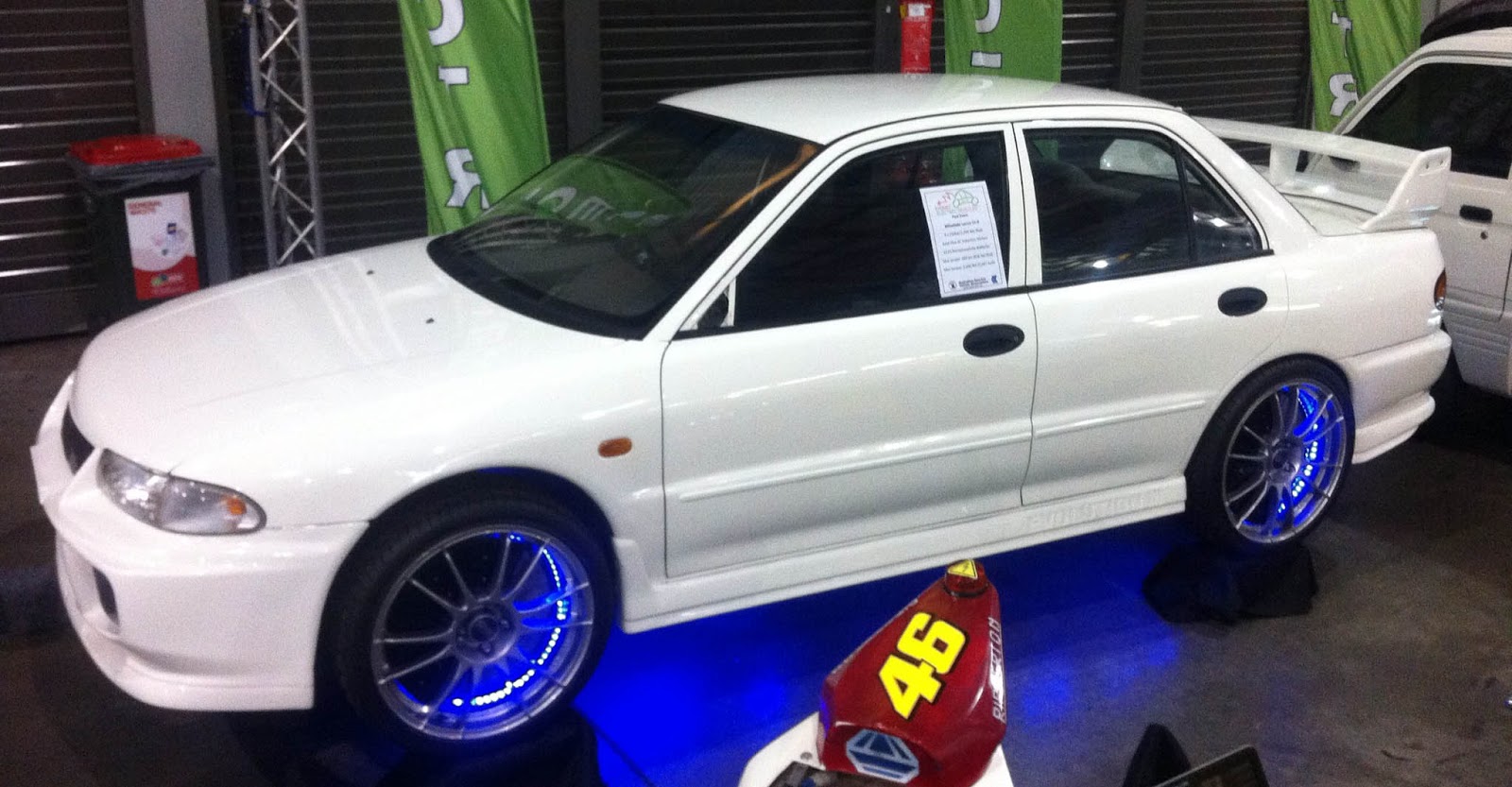

Australia based start-up company Evans Electric have unveiled an All Wheel Drive In-Wheel Motor powered Lancer Evo 3 during Meguiar's MotorEx at Sydney Olympic Park

The 4 door sedan with World Rally Championship pedigree features a direct drive, disc type electric motor in each of it's 19” wheels. Each Axial Flux 3 phase AC Induction wheel motor has a nominal output of 75 kw and 625 Nm of torque with a peak output of 150 kw and 1,250 Nm giving the vehicle a total peak output of 600 kw (800 hp) and 5,000 Nm.

While the torque figure could at first glance appear fantastic, standard automotive industry practice only quotes torque at the flywheel not at the wheels. As an example the Tesla Model S Performance has a quoted peak motor torque of 600 Nm. With a single speed reduction gear ratio of 9.73:1 that equates to a total of 5,838 Nm (minus gearing losses) at the wheels. The Evans Electric motors are direct drive, so the rotor turns at the same speed as the wheel. Instead of mechanical reduction gearing, they are electrically geared using an 8 pole stator winding configuration.

Direct drive wheel motors eliminate mechanical transmission losses allowing up to 85% of a vehicle's kinetic energy to be recoverable during braking. Maximising brake regeneration lowers a vehicles over-all energy consumption potentially leading to more range per kWh of battery capacity or the use of a smaller battery pack for similar range. As the battery is the single most expensive component in an EV this could lead to lower cost electric cars.

The Evans Electric in-wheel motors enable non-contact electromagnetic braking, replacing hydraulic friction brake systems which are 99% redundant in current generation electric/hybrid vehicles. Using only the wheel motors, the car can brake at greater than 1G.

Evans Electric hold a patent for a vehicle drive system using wheel motors for propulsion and braking, the most impressive feature of which is that safety and vehicle dynamics features such as ABS, stability control, traction control, brake steer, active brake bias, torque vectoring, intelligent cruise control, emergency brake assist and collision avoidance all become customisable and upgradable software functions.

When these systems are combined with wheel motors they allow a new level of performance based active yaw control that unlike most current stability control systems (which only activate in an emergency situation) are active at all times, dynamically fine tuning understeer and oversteer to enhance cornering speed and safety.

After an extensive period of wheel motor validation testing and power electronics development the company has met with several automotive Tier 1 suppliers to discuss collaboration &/or licensing to move the project from proof of concept to commercial product development.

Final preparations are under way with track testing expected to commence by the time the Bathurst 1000 rolls around in October.

Posted on

Mercedes-Benz unveil Hub Motor Powered Vision Golf Cart

During this year's Open Championship, Mercedes-Benz presented the "Mercedes-Benz Vision Golf Cart". Hundreds of golf as well as automobile fans took part in an international competition by submitting their ideas for a golf cart of the future. This invaluable input provided the basis for a visionary golf cart design study created by the Mercedes-Benz design department. As well as reflecting the innovative and forward-thinking ideas and wishes of golf players, the study includes the characteristics and technologies of a Mercedes-Benz.

"The Mercedes-Benz Vision Golf Cart has a refined, simplified yet functional shape that fits well into our 'Sensual-Purity' design philosophy. The flow shapes create a 'sculpture on wheels' impression", says Gorden Wagener, Vice President Design Daimler AG. "I was very inspired by the idea of designing a golf cart, giving it a new shape and new sorts of meaning. Why not treating a golf cart like a car, and making it a 'Golf Car'".

Earlier this year, Mercedes-Benz called upon golf and automobile fans from around the world to submit their ideas for a Mercedes-Benz golf cart of the future. So began the search to find the best, most unusual, most innovative and most promising concepts. A jury chaired by Gorden Wagener then selected the best entries from among all the submissions. The winners received an exclusive invitation as VIP guests to the Open Championship.

Building on the basis provided by these ideas and concepts, and due consideration to the Mercedes-Benz design strategy, the Mercedes-Benz Advanced Design Center in Carlsbad, California, developed the Mercedes-Benz Vision Golf Cart. The cart combines the aspects of Mercedes-Benz vehicles with the functionality of a golf cart. The diamond grille, for instance, was incorporated to give the cart a modern face that is unmistakably a Mercedes-Benz.

The idea of the competition was enthusiastically taken up by golfers from all over the world like Japan, South Africa and Germany, as well as North- and South America. The most frequently mentioned ideas and requirements were then incorporated into the design study that has now been presented.

The Mercedes-Benz Vision Golf Cart and its innovative features The Mercedes-Benz Vision Golf Cart is electric driven, powered by a battery that is kept continuously charged by a solar module integrated into the roof. Manual charging, as for a conventional golf cart, is also possible. The vehicle is controlled in innovative and intuitive fashion via a joystick mounted on the centre console, so making it possible for either passenger to drive the golf cart.

"It has the latest in modern technology. Using touch screen monitors, virtually all aspects of the cart can be controlled without extra buttons. Simplicity is the key. Intuition and pure form can maybe best describe the cart", says Margarete Wies, Head of the Mercedes-Benz Advanced Design Center in Carlsbad, California.

The centre console also incorporates a multimedia panel that includes a rotatable docking station for an iPad or iPhone and a USB interface. Various functions that are available in the golf cart can be controlled from here, for example vehicle functions such as loudspeakers or the air-conditioning system, the head-up display, the music system or communication with the clubhouse and other golf carts.

If so required the head-up display integrated into the windscreen can also be used, when the golf cart is stationary, to show the course layout, the current status of the game or weather information. The digital speedometer is placed beneath the windscreen. One wish that came up time and time again, irrespective of country or language, was the possibility of being able to use a telephone. The cart thus also features Bluetooth, so allowing telephone calls to be made via the loudspeaker system while on the move.

An important issue is connectivity. Due to the iPad/iPhone connection to the cart it is possible to communicate directly with the golf club, for example to order drinks or food for the halfway catering. Current weather data and rain radars are available at any time. Working people have the possibility to write e-mails. In addition, users can share the digital score card or even photos from the golf game directly on social media channels.

The so-called "fore button" can be used to quickly warn other players of a misplaced shot. Pressing this button sends a warning to all other golf carts within the danger zone so that they, too, can issue a warning signal.

The interior takes its cues from the design of a Mercedes-Benz car. The elegant and ergonomically shaped seats, for example, are heated as well as ventilated and can be adjusted electronically using the Mercedes-typical controls on the side of the seat. The AIRSCARF neck-level heating system, first introduced in 2011 in the new SLK Roadster, is also envisaged as a feature of the Mercedes-Benz Vision Golf Cart. AIRSCARF, as its name suggests, wraps the neck and shoulder area in warm air, so making it possible to drive the vehicle open, even in cooler weather. There is also an integrated air-conditioning system, so ensuring a pleasant ambience even on a very hot or cold day.

The optional lightweight doors are another special feature. A click-in function allows these to be very simply fitted if the weather is not so good, so providing protection against wind and rain. A retractable lightning rod is included for added safety in case storm clouds start to gather. In bright conditions the windscreen can be darkened at the touch of a button, while it also features windscreen wipers with rain sensors, thus ensuring that they activate as soon as it starts to rain. In addition, the space behind the seats is ideal for stowing umbrellas.

One very commonly expressed request from the international entrants to the competition was, quite simply, to have plenty of stowage space. The Mercedes-Benz Vision Golf Cart therefore includes a whole range of stowage facilities. As well as the trunk compartment underneath the stowage area for the two golf bags, there are two dashboard compartments. The centre console is also specially designed to accommodate golf balls and scorecards and have a sun glasses storage. There is a small fridge fitted beneath the centre console, while cup holders between the seats will keep drinks hot or cold. An illuminated vanity mirror was another request, from female participants in particular, and is located at eye-height for the drivers.

In addition to its use on the golf course, the golf cart is also able to run on normal roads. The designers have, for example, also included all the vital features such as indicators, headlamps and tail lights. Thanks to the LED headlamps, play can also continue when the light starts to fail, as they include a floodlight function.

Although the Mercedes-Benz Vision Golf Cart is only a design study so far, there are no doubt many players who would like to see the cart become reality, bringing its fresh ideas and thus more fun, more innovation and more comfort to moving around on the golf course.

Posted on

Jaguar C-X75 first drive review [VIDEO]

Compared with the Porsche 918 and the hybridized Ferrari F70/Enzo replacement, The Jaguar C-X75 takes a smaller-engined, subtly different approach to being a “supercar with an environmental edge.”

The still-born Hypercar has a lightweight 1.6 litre supercharged and turbocharged four-cylinder engine producing 500 hp and reving to 10,000 rpm. While the original concept was for the C-X75 to be a series hybrid with four 195bhp (145kW) electric motors – one for each wheel - produce 778bhp and a total torque output of 1,180lb ft (1,600Nm), the car tested here has only 390 hp (285 kW) of electric power giving a total output of 890 hp (654 kW) when combined with the ICE.

Posted on

Bosch reveal Aston Martin DB9 4WD Plug-in Hybrid [VIDEO]

Bosch has revealed a hybrid Aston Martin DB9 complete with electric motors, torque vectoring and plug-in recharging making the DB9 more economical and powerful. The hybrid DB9 hasn’t been built to...

[[ This is a content summary only. Visit my website for full links, other content, and more! ]]
Posted on

E-RA Raceabout Research EV gets some upgrades [VIDEO]

The E-RA is an ongoing research project by the Helsinki Metropolia University of Applied Sciences. Previously, the Electric RaceAbout (E-RA) set a new street-legal electric vehicle lap record at the...

[[ This is a content summary only. Visit my website for full links, other content, and more! ]]
